Timeline Functions

NetLinx Timeline functions provide a mechanism for triggering events based upon a sequence of times. The sequence of times is passed into the timeline functions as an array of LONG values, with each value representing a time period (in milliseconds) that is either relative to the start time of the timeline or to the previously triggered event. Timelines provide the capability to dynamically set up a timed sequence, providing a mechanism to modify the sequence, and allow the user to create, delete, and modify sequences.

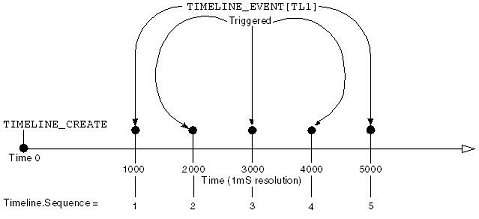

Timelines are represented by the illustration below:

  • When the TIMELINE_CREATE function is executed, the timeline starts at zero and begins counting. When the timer value equals a value in the TIMES array, a TIMELINE_EVENT is triggered.
  • Within the timeline event, a TIMELINE structure is available to get information about the specific time from the TIMES array that generated the event.
  • When a relative timeline is created, the NetLinx Master converts the provided relative times into absolute times that are stored internally.

The TIMELINE structure contains the following members:

1
2
3
4
5
6
7
8
STRUCTURE TIMELINE
{
    INTEGER       ID             //user supplied ID
    INTEGER       SEQUENCE       //index in Times array
    LONG          TIME           //time since start of timeline
    INTEGER       RELATIVE       //0=absolute 1=relative
    LONG          REPETITION     //# of loops for repeating timeline
}

Each TIMELINE data member is defined as follows:
ID The ID that the user assigned to the timeline in the TIMELINE_CREATE function.
Click here for details on timeline IDs.
SEQUENCE The index of the time in the Times array that was passed to the TIMELINE_CREATE function. The SEQUENCE data member is used to determine what action to take for the event and is normally decoded with a SWITCH/CASE structure (as shown in the example below).
TIME The amount of time that has elapsed since the timeline started.
For repeating Timelines, the TIME and REPETITION data members can be used to calculate the total amount of time it has been running.
RELATIVE If the timeline is operating in relative mode, this data member is equal to TIMELINE_RELATIVE. If the timeline is absolute, it is equal to TIMELINE_ABSOLUTE.
REPETITION If the timeline was created with TIMELINE_REPEAT, this data member holds the number of times the timeline has been executed. REPETITION contains zero for the first pass through the timeline.
Thus, the calculation to determine the total amount of time the timeline has been running is simply:
TIMELINE.TIME * TIMELINE.REPETITION.

Returns
0 Successful
1 Timeline ID already in use
2 Specified array is not an array of LONGs
3 Specified length is greater than the length of the passed array
4 Out of memory

Example

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
DEFINE_VARIABLE
LONG TimeArray[100]

DEFINE_CONSTANT
TL1 = 1
TL2 = 2

DEFINE_EVENT
TIMELINE_EVENT[TL1] // capture all events for Timeline 1
{
    switch(Timeline.Sequence) // which time was it?
    {
        case 1: { SEND_COMMAND dvPanel,"'TEXT1-1 1'"  }
        case 2: { SEND_COMMAND dvPanel,"'TEXT1-1 2'"  }
        case 3: { SEND_COMMAND dvPanel,"'TEXT1-1 3'"  }
        case 4: { SEND_COMMAND dvPanel,"'TEXT1-1 4'"  }
        case 5: { SEND_COMMAND dvPanel,"'TEXT1-1 5'"  }
    }
}

TIMELINE_EVENT[TL2]
{
    switch(Timeline.Sequence)
    {
        case 1: { SEND_COMMAND dvPanel,"'TEXT2-2 1'"  }
        case 2: { SEND_COMMAND dvPanel,"'TEXT2-2 2'"  }
        case 3: { SEND_COMMAND dvPanel,"'TEXT2-2 3'"  }
        case 4: { SEND_COMMAND dvPanel,"'TEXT2-2 4'"  }
        case 5: { SEND_COMMAND dvPanel,"'TEXT2-2 5'"  }
    }
}

DEFINE_PROGRAM
PUSH[dvPanel,1]
{
    TimeArray[1] = 1000
    TimeArray[2] = 2000
    TimeArray[3] = 3000
    TimeArray[4] = 4000
    TimeArray[5] = 5000
    TIMELINE_CREATE(TL1, TimeArray, 5, TIMELINE_ABSOLUTE,TIMELINE_REPEAT)
}

PUSH[dvPanel,2]
{
    TimeArray[1] = 1000
    TimeArray[2] = 1000
    TimeArray[3] = 1000
    TimeArray[4] = 1000
    TimeArray[5] = 1000
    TIMELINE_CREATE(TL2, TimeArray, 5, TIMELINE_RELATIVE, TIMELINE_ONCE)
}

The example above creates two Timelines (TL1 and TL2) that trigger events at the same rate (once per second).

  • TL1 uses TIMELINE_ABSOLUTE to specify that the times in TimeArray are absolute with respect to the start of the timeline. Since TL1 specifies the TIMELINE_REPEAT, it is also repeating and will generate a TIMELINE_EVENT every second iterating through all five times in a round-robin fashion: 1,2,3,4,5,1,2,3,4,5,1,2,3, and so on.
  • TL2 uses TIMELINE_RELATIVE to specify that the times in TimeArray are relative to each other (i.e. each events occurs 1000 milliseconds after the previous). Since TL2 specifies the TIMELINE_ONCE parameter, it will execute the entire timeline once, then stop: 1,2,3,4,5.
